In-line Polarizer

Features

Applications

         Low Insertion Loss

         Communication Systems

         High Return Loss

         Test Instrument

         High Extinction Ratio

         Fiber Sensor

         High Reliability

         Research

         High Stability

Specifications

Parameters

Unit

Value

Center Wavelength

nm

1310, 1550

1064

980

850

Operating Wavelength Range

nm

±50

±30

±10

±10

Typ. Insertion Loss at 23℃

dB

0.3

0.4

0.7

0.8

Max. Insertion Loss at 23℃

dB

0.5

0.6

0.9

1

Min. Return Loss

dB

50

50

50

50

Typ. Extinction Ratio at 23℃

dB

30

30

28

28

Min. Extinction Ratio at 23℃

dB

28

28

25

25

Max. Optical Power(CW)

mW

300

Max. Tensile Load

N

5

Fiber Type

-

PM1550

PM980

PM980

PM850

SMF-28E

Hi1060

Hi1060

SM800

Operating Temperature

℃

-5~+70

Storage Temperature

℃

-40~+85

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;

The default connector key is aligned to slow axis;

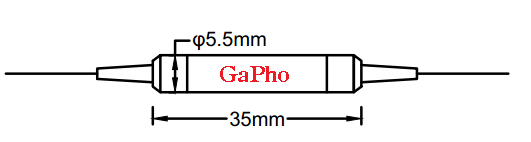

Package Dimensions

Ordering Information

     ILP-1111-2345-66

1111

-Center Wavelength:

1550=1550nm,1310=1310nm,......,0850=850nm

2

-Fiber type for input:

0=Panda fiber, 1=smf-28e, 2=hi1060,

3

-Fiber type for output:

0=Panda fiber, 1=smf-28e, 2=hi1060,

4

-Pigtail type:

0=250 bare fiber, 1=900um loose tube

5

-Fiber length:

0=0.8m,1=1m

66

-Connector type:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC
