Description:
The 1x1 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber.
This is achieved using a patentpending opto-mechanical configuration and activated via an electrical control signal.
A latching version preserves the selected optical path after the drive signal has been removed,
while the nonlatching versions default to either the open or closed state when power is removed.
The switch has integrated electrical position sensors.
The new material based advanced design significantly reduces moving part position sensitivity,
offering unprecedented high stability as well as unmatched low cost.
Features:
Low insertion loss
Wide wavelength range
Low crosstalk
High stability and reliability
Locked and non locked
Application:
Integration of subsystems
Optical network monitoring/protection
Routing fiber optic testing system
Reconfigurable OADM
Manufacturing and application of testing and measuring equipment
Network testing system
Specifications:
Parameters | Specifications | Unit |
Operating Wavelength | 1260~1620(SM)、850(MM) | nm |
Insertion Loss | ≤0.6 | dB |
Wavelength Dependent Loss | ≤0.25 | dB |
Polarization Dependent Loss | ≤0.05 | dB |
Temperature Dependent Loss | ≤0.25 | dB |
Return Loss | SM≥55MM≥35 | dB |
Cross Talk | SM≥50MM≥35 | dB |
Switch Time | ≤8 | ms |
Repeatability | ≤±0.02 | dB |
Durability | ≥107 | times |
Operating Voltage | 3 or 5 | V |
Switch Type | Non-Latching/Latching |
|
Operating Temperature | －20~＋70 | ℃ |
Storage Temperature | －40~＋85 | ℃ |
Optical Power | ≤500 | mW |
Dimension | 27.0L×12.0W×8.2H | mm |
Note: 1. Specifications are subject to change without prior notice.
The above specifications are applicable to devices without connectors.
Pin Configurations:
Type | Optical Path | Electric Drive | Status Sensor |
1×1 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 |
Latching | Non‐light | -- | -- | GND | V＋ | Close | Open | Open | Close |
P1-P2 | V＋ | GND | -- | -- | Open | Close | Close | Open |
Non-Latching | Non‐light | -- | -- | -- | -- | Close | Open | Open | Close |
P1-P2 | V＋ | -- | -- | GND | Open | Close | Close | Open |
Electrical Specification：
| Specifications | Voltage | Current | Resistance |
5V | latching | 4.5~5.5 V | 36~44 mA | 125 Ω |
5V | Non-latching | 4.5~5.5 V | 26~32 mA | 175 Ω |
3V | latching | 2.7~3.3 V | 54~66 mA | 50 Ω |
3V | Non-latching | 2.7~3.3 V | 39~47 mA | 70 Ω |

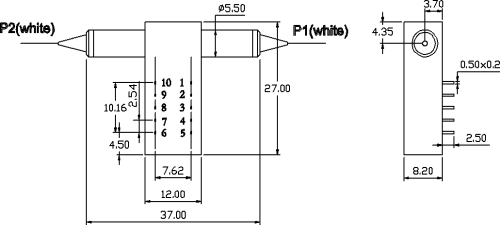

Mechanical Dimensions (Unit:mm)
Optical Route
Ordering Information:
Fiber Type | Voltage | Switch type | Test Wavelength | TubeType | Fiber length | Connector |
SM:SM,9/125 | 3:3V | L:Latching | 850:850nm | 25:250um | 05:0.5m±5cm | FP:FC/PC,FA:FC/APC |
M5:MM,50/125 |
|
| 1310:1310nm | 90:90um | 10:1.0m±5cm | SP:SC/PC,SA:SC/APC |
M6:MM,62.5/125 | 5:5V | N:Non-latching | 13/15:1310/1550nm | X:Others | 15:1.5m±5cm | LP:LC/PC,LA:LC/APC |
X: Others |
|
| X:Others |
| X:Others | OO:None,X:Others
|
