Code: VOA-980
Wavelength: 980nm
Fiber: 900um/1m
Connector: FC/UPC
Brand: GaPho
Material: 0
Package: 26*18*8
Previous： In-line Polarizer Next： VOA-850nm-MMF
产品详情

TEST DATA SHEET

Description: VOA,980nm .hand adjustment, HI1060    P/N:VOA-980-900L-1 -FC

fiber,900um, 1m,FC/UPC connector,26x18x8mm


S/N:190113757


Parameters
Unit
Specification
Test Data
Center Wavelength
nm
980
980
Operating Wavelength Range
nm
±40
±40
Max.Attnuatio n
dB
0-60
0-60
Min. Insertion Loss
dB
<0.80
0.77
Return Loss
dB
250
55
PDL
dB
<0.15
0.02
Fiber Type
H11060 fiber with 900um loose tube


Conn ector Type
FC/UPC


Package Dimensions
mm
26X18X8

Max. Power
Mw
500

Fiber Length
m
1

Max. Tensile Load
N
5

Operation Temperature
°C
-0 to 70

Storage Temperature
°C
-40 to 85 I




参数
单位
规格
测试数据
中心波长
nm
980
980
工作波长范围
nm
±40
±40
衰减范围
dB
0-60
0-60
最小插损
dB
<0.80
0.77
回损
dB
250
55
PDL
dB
<0.15
0.02
光纤类型
H11060 fiber with 900um loose tube


连接器类型
FC/UPC


包装尺寸
mm
26X18X8

最大功率
Mw
500

光纤长度
m
1

最大拉力
N
5

工作温度
°C
-0 to 70

存储温度
°C
-40 to 85 I

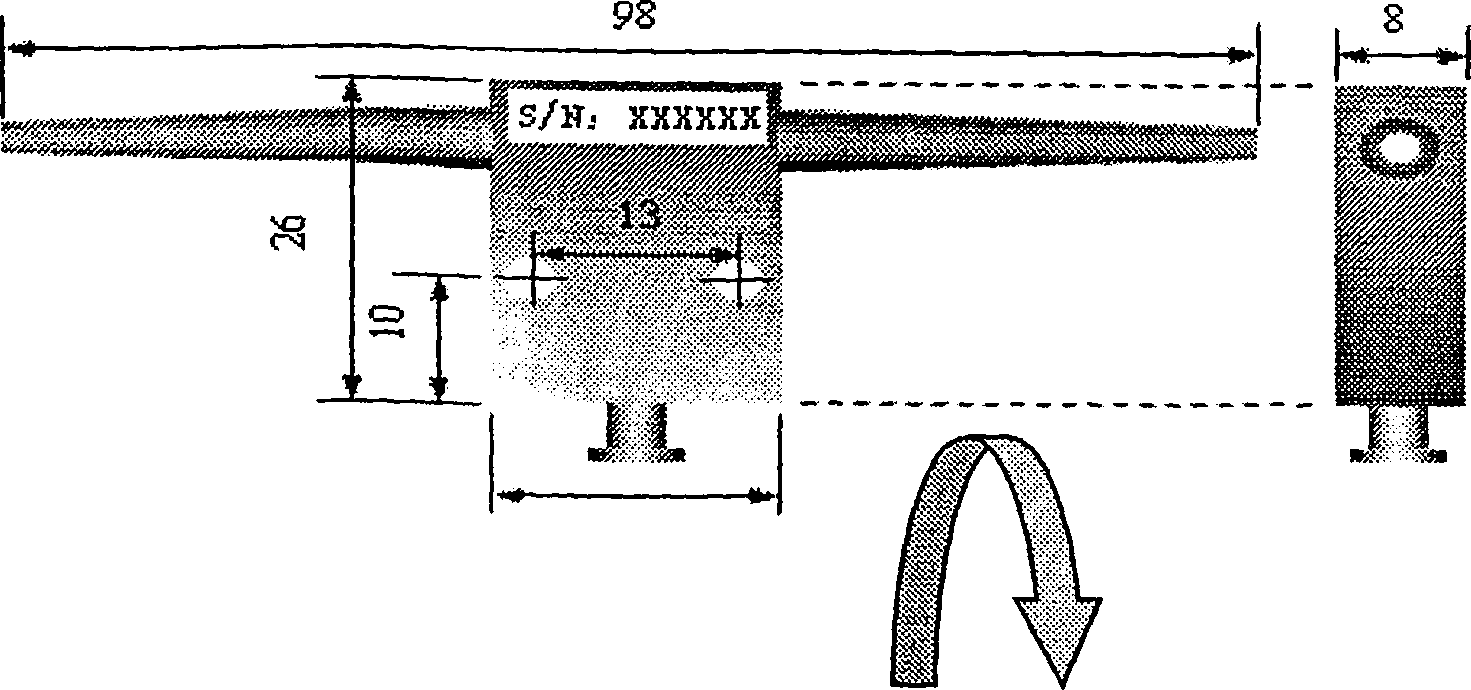

Package Dimensions：














★Remarks：

According to the above graphics, turn the knob clockwise to increase gradually the value of
