1*8 Optical Switch
CHAT
leave
Code: OP1*8
Wavelength: 1260-1650
Fiber: 1m
Brand: GaPho
Material: 0
产品详情

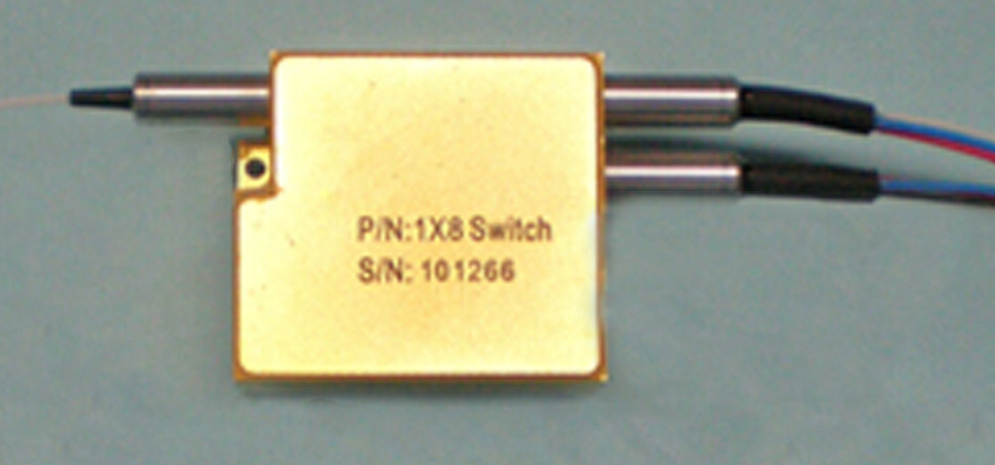

1×8 Optical switch

ØFeatures

·Unmatched Low Cost

·Low Insertion Loss

 ·High Channel Isolation

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching


ØApplications

·Optical Network Protection/Restoration

·Optical Signal Routing

·Configurable Optical Add/Drop

·Transmitter and Receiver Protection

·Network Test Systems

·Instrumentation


ØSpecifications

Parameters

Unit

TZ-FSW-1×8

Wavelength Range

nm

850±40 ,1310±40 0r 1550±40

1260~1650

Test Wavelength

nm

850 / 1310

1310/1550,1260~1360,1510~1610

Insertion Loss 1, 2

dB

   Max:1.4

Return Loss 1, 2

dB

MM ≥ 35   SM ≥ 50

Crosstalk 1

dB

MM ≥ 35   SM ≥ 55

PDL

dB

≤0.2

WDL

dB

≤0.30

Repeatability

dB

≤±0.05

Operating Voltage

V

3.0   or   5.0

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤15

Optical Power

mW

≤300

Operating Temperature

0 ~ +70

Storage Temperature

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)36.0×(W)34×(H)11 or Customer design

Note: 1 Within operating temperature and SOP.

2Excluding Connectors.







ØPin Configurations

Type

State

Electric Drive

Status Sensor

1×4


Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

0(Reset)

GND

GND

GND

V+

Close

Open

Open

Close

1(Set)

V+

GND

GND

GND

Open

Close

Close

Open

Non-

latching

0(Reset)

---

---

---

---

Close

Open

Open

Close

1(set)

V+

---

---

GND

Open

Close

Close

Open


ØOptical Route

Relay No.

No.1

No.2

No.3

Switch status

Relay Status

0

0

0

Com0-Port1

1

0

0

Com0-Port2

0

1

0

Com0-Port3

1

1

0

Com0-Port4

0

0

1

Com0-Port5

1

0

1

Com0-Port6

0

1

1

Com0-Port7

1

1

1

Com0-Port8


ØDimension



ØOrdering Information:

Fiber Type

Voltage

Switch type

Test Wavelength

TubeType

Fiber length

Connector

SM:SM,9/125

3:3V

L:Latching

850:850nm

25:250um

05:0.5m±5cm

FP:FC/PC,FA:FC/APC

M5:MM,50/125

1310:1310nm

90:90um

10:1.0m±5cm

SP:SC/PC,SA:SC/APC

M6:MM,62.5/125

5:5V

N:Non-latching

13/15:1310/1550nm

X:Others

15:1.5m±5cm

LP:LC/PC,LA:LC/APC

X: Others

X:Others


X:Others

OO:None,X:Others
